Tilt Sensor

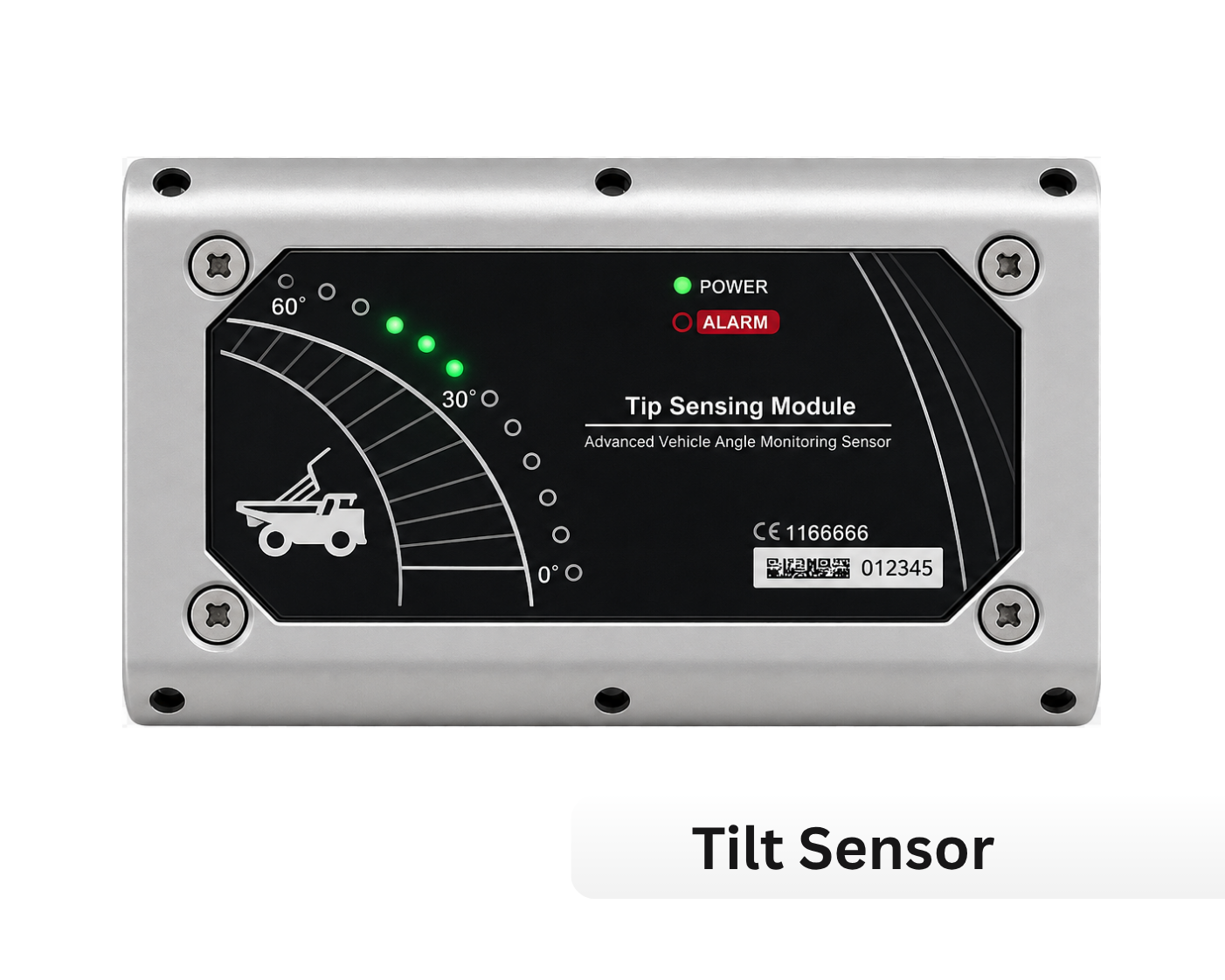

Tipper Tilt Sensor (TDR-11)

Prevents driving away with a raised tipper body

Ruggedised tipper drive relay and tilt sensor that continuously monitors body angle during loading and tipping. It warns the driver and inhibits drive-away while the body is raised, preventing rollovers, overhead-structure strikes and costly chassis damage.

Product Code: TDR-11
Voltage: 12 / 24 V DC
Output: Drive inhibit relay

CEFCCRoHSIP69K

Key features

Continuous tipper body angle monitoring
Drive-away inhibit while body is raised
LED angle scale with instant visual feedback
Menu button for on-site calibration
Sealed housing for chassis-mounted use
Braided cable harness for harsh environments
Works with 12 V and 24 V vehicle systems
Simple bolt-on installation on tipper frame

Applications

Tipper and dump trucks
Quarry and aggregate haulage
Construction site logistics
Waste collection fleets

Technical specifications

Product Code	TDR-11
Function	Tipper drive relay + tilt monitoring
Indication	Multi-LED angle scale, power & menu LEDs
Operating Voltage	12 / 24 V DC
Output	Relay drive inhibit / alarm
Mounting	Chassis / tipper body bracket
Cable	Braided protective harness
Environment	Sealed, dust & vibration resistant

Specifications may be tailored for OEM/ODM and private-label programs.

Interested in Tipper Tilt Sensor (TDR-11)?

Send us your volumes and target markets — our team replies with pricing and lead times within one business day.

Request a Quote
